Induction Cap Seal Inspection Machine

Hawkvis Malaysia Distributor

OFFICIAL HAWKVIS INDUCTION CAP SEAL INSPECTION MACHINES SUPPLIER IN MALAYSIA

Low’s Cap Seal Sdn Bhd is proud to be a trusted distributor of Hawkvis induction cap seal machines in Malaysia, providing advanced packaging inspection solutions for induction seals.

Hawkvis committed to the development of machine vision technology and visual inspection equipment for packaging, whether you’re sealing food, beverage, pharmaceutical, chemical, or personal care products, we offer a complete solution—including Sealing and inspection machines together with our industry-leading cap seal liners.

Hawkvis induction cap seal inspection system adopts advanced thermal imaging technology, checks every product’s cap seal quality online at real time and reject any defective products off line automatically. By ensuring every product is safely sealed, it helps protect the product quality and safety.

AVAILABLE HAWKVIS MACHINES FOR SALE

Model	Standard R310-20	High Speed R310-50	Flagship R310-70
Camera Type	Uncooled Micro-bolometer (Industrial Grade)	Uncooled Micro-bolometer (High Speed)	Cooled-IR Thermal Imager (Military Grade)
Sensitivity	50 mK	50 mK	20 mK
Heat Image
Inspection Speed	Conveyor Speed: <18 m/m. Inspection Speed: Up to 300 BPM	Conveyor Speed: <50 m/m. Inspection Speed: Up to 500 BPM	Conveyor Speed: <70 m/m Up to 800 BPM.
Applicable Cap Types	Single layer CT cap Tip top cap Other single-layer caps	Single layer CT cap Tip top cap Other single-layer caps	CT cap, Tip top cap CRC cap Flip-top cap Other regular caps
Rejection Unit	Regular rejection unit included. (Custom reject unit for super large product or other special product might be at extra cost.)	High speed rejection unit.	High speed rejection unit.
Defect Types	Tilted/crooked cap loose cap Low-heated seal Over-heated seal	No seal Edge damaged/cut/folded seal Reverse seal Double seal

Functions and Features

Intelligent vision inspection algorithms powered by deep learning technology, which leads to effective and high precision inspection performance.
100% inspection of each single product for over-all quality control.
When a defective is detected, system will notify by alarm sound and light flash, and automatically reject the defective product to the recycle bin for operator disposal.
Online inspection at production speed, without lowering productivity.
The system can hold limitless quantity of product inspection recipes. Operator can simply change over between products by one click.
Inspection data storage, easy analysis & traceability.
The system has multi-levels user management by allocating different permissions. Every user is password controlled and system log will record their operation records for future audit.
Meet 21 CFR PART 11 requirements.

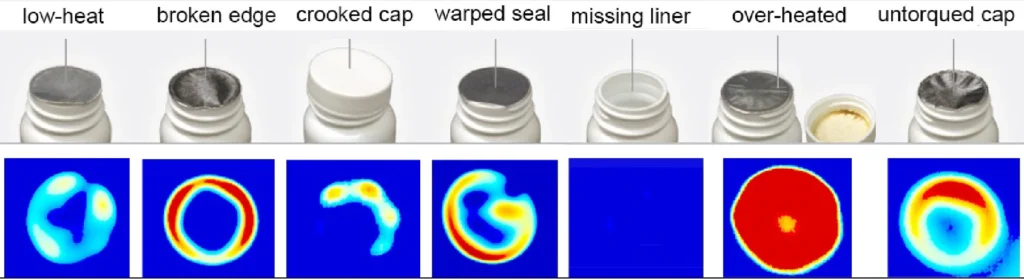

Defects Category

Our system can effectively detect common induction seal issues. These seal issues happened due to different reasons, which can be related to either capping/wadding issues, aluminum seal liner quality issues, or sealing machines parameter setting issues, etc.

Specifications

Applicable bottles	PET, PS, PP, HDPE, glass
Bottle shape & size	Unlimited
Cap diameter	20 – 200 mm
Applicable caps	All regular CT caps, tip caps (single layer caps)
Applicable Seal Liners	Single aluminum seal, Alu Seal + Paperboard
Inspection Speed	Conveyor speed <18m/m Production speed <300BPM. (Depending on product size)
Rejection Unit	Air cylinder driven regular automatic rejection unit.
Detection precision	Average 99.6%
Machine size	1464533cm
Total weight	94 KGS
Warranty	1-year limited
